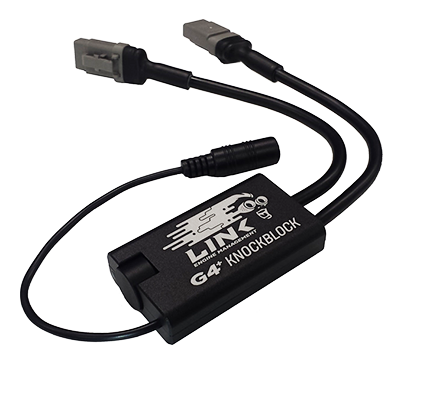

Link-KnockBlock G4+ (KNB)
Link-KnockBlock G4+ (KNB)
Regular price
$560.00
Sale price
$560.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Want 48hr day delivery? Be quick!
Question about this product?
We're happy to help.
The G4+ KnockBlock is an essential tool for tuning and can aid in the early detection of incorrect ignition timing, lean air/fuel mixtures and mechanical issues. It is used it with ear buds, headphones or noise cancelling ear muffs and features special filtering to allow you to listen in and detect knock early.
Please note headphones with their own noise filtering may be unsuitable for use with the knock block.
What’s in the Box?
G4+ KnockBlock
2 sensor looms (attached)
1 headphone loom (attached)
Quick Start Guide
1 USB cable mini
2 Bosch type doughnut OEM knock sensors
2 small Link Engine Management stickers
Specifications:
Operating
Install the knock sensor/s in a suitable location on the engine (typically on a solid mounting point on the block near the cylinder head)
If only using one sensor, leave the unused sensor cable disconnected
Turn the volume control clockwise until it clicks. The LED indicator will turn blue when the KnockBlock is operating
Turn the volume to the minimum setting (most anti-clockwise)
Connect headphones to the 3.5mm audio jack
Run the engine and carefully increase the volume (clockwise) until engine mechanical noise can be heard. Adjust to a comfortable listening volume
Charging
Turn off the KnockBlock by turning the volume control anti-clockwise until it clicks
Connect the USB charging cable to the KnockBlock’s Mini USB connector. Can be charged from any standard USB charger PC, laptop, car or cell phone charger (2.1A at 5V max)
The LED indicator will show red while charging. When the indicator turns off the battery is fully charged
Charge the G4+ KnockBlock after use and before storage
- Listen to one or two knock sensors
- Special filtering design improves signal to noise ratio
- Can be used with ear-buds, headphones or noise cancelling ear muffs
- Long life lithium rechargeable battery
- Rugged CNC aluminium enclosure
- Flying lead headphones connector
- Can be used with all OEM knock sensors
- Can be used to interface directly to a laptop for recording of engine noise or knock sensor frequency analysis (using PCLink G4+)
